2400rpm Full Hydraulic Soil Boring Machine Portable High Speed
MDT-2 Full Hydraulic Portable Drilling Rig Is A Kind Of Light Rig
Designed For Geological Exploration In Remote Area
MDT-2/MDT-2A Full Hydraulic Portable Drilling Rig
I．General Overview
MDT-2 Full Hydraulic Portable Drilling Rig is a kind of light rig
designed for geological exploration in remote area difficult to
enter. It is mainly suitable for diamond drilling with wire line

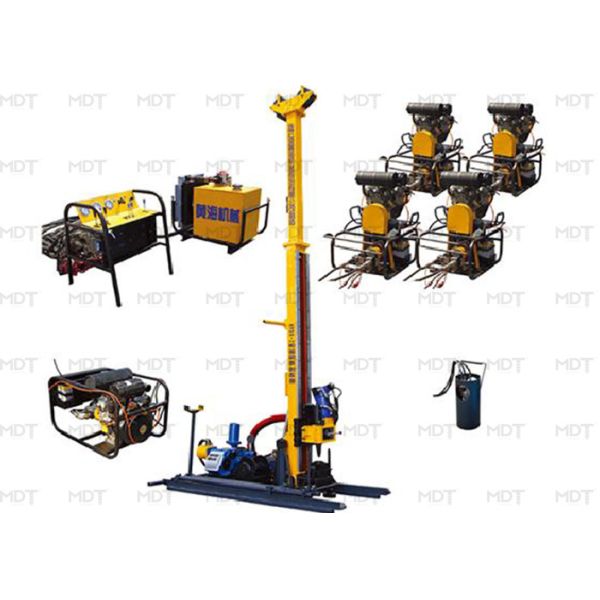

coring technique. The rig consists of diesel power unit, hydraulic
system, control panel, mast, main winch, wireline winch, drill
head, feed system, footclamp, etc. The rig is completely hydraulic
driven for all its surface coring function. Fission style design
makes the rig in good assemblability and disassemblability,
facilitating transportation to most inaccessible areas. Robust
structure plus exact control system ensures high penetration rate
and outstanding reliability.
Ⅱ. Main Technical Features:
1. Full Hydraulic and Drill Head model. The drill head rotation is
realized with four hydraulic pumps driven by two diesel engines;
this also makes the feeding hydraulic cylinder system realize its
full stroke feeding in both higher and lower speed.
2. With Good dismantlability. The rig is adopted split type in
design, including power unit, hydraulic oil tank, manipulation
platform and operation mechanism, i.e. the drilling section. So
they are in light weight and can be carried by man power or animal
power. The rig can be applied and performed in narrow space for
drilling of hole at 45°－90° with stronger adaptability.
3. Strong techniques adaptability. Besides diamond drilling with
wire line coring technique, it is in strong techniques
adaptability. It is applicable for the drilling and feeding
requirement of any other stratum.
Ⅲ. MDT-2 Specifications
| Diesel Engine | Model | YC2108 |
| Power | 33Kw (44HP) ×2 |
| Rated RPM(Factory setting) | 2400rpm/min |
| Drilling Capacity | BQ | 500m(1640ft) |
| NQ | 350m(1148ft) |
| HQ | 120m(393ft) |
| Drill Head | RPM | Two Shifts/ Stepless Change 0-1200 RPM |
| Max. Torque | 900 N·m(666lbf·ft) |
| Max. Lifting capacity of Spindle | 50 kN(11000 lbf) |
| Max. Feeding Power | 25 kN(5500 lbf) |
| Primary Pump | Hydraulic pump
Axial Piston variable displacement Triplex pump for driving of
rotator, winch mud pump & leveling jacks.
With load sensing system. | 1st Pump:67LPM at 25MPa
2nd Pump:43LPM at 20MPa
3rd Pump: 30 LPM at 20MPa
4rd Pump: 7 LPM at 20MPa |
| Capacity of Main Hoist | Hoisting force (single wire) | 20kN(4400lbf) (bare drum) |
| Hoisting Speed (single wire) | 84-165m/min (bare drum) |
| Steel Wire Diameter | 14 mm(0.55 inch) |
| Steel Wire Length | 30 m(98.42feet) |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 800 Kg(1760lb) (bare drum) |
| Hoisting Speed (single wire) | 96-255m/min (bare drum) |
| Steel Wire Diameter | 6 mm(0.23 inch) |
| Steel Wire Length | 500 m(1640 feet) |
| Mast | Mast Height | 5 m(16.4 feet) |
| Mast Adjusting Angle | 0°—90° |
| Drilling Angle | 45º off horizontal to 90ºvertical down |
| Rod Pull | 1.5m |
| Feeding Stroke | 1800 mm(5.9ft) |
| Mud Pump | Type | Reciprocating pump Triplex Plunger |
| Model | BW100 |
| Others | Weight (platform type) | 1500 Kg(3306 lb) |
| Dimensions (L×W×H) | 3500×1500×1300mm
(11.48×4.92×4.26ft) |
IV. HYDX-2A Specifications
| Diesel Engine | Model | Cummins 4BTA3.9-C100 (turbocharged and charge water cooled) |
| Power | 74Kw (99HP) |
| Rated RPM(Factory setting) | 2200rpm |
| Drilling Capacity | BQ | 500m(1640ft) |
| NQ | 350m(1148ft) |
| HQ | 120m(393ft) |
| Drill Head | RPM | Four Shifts/ Stepless Change 0-1200 RPM |
| Max. Torque | 900 N·m(666lbf·ft) |
| Max. Lifting capacity of Spindle | 50 kN(11000 lbf) |
| Max. Feeding Power | 25 kN(5500 lbf) |
| Primary Pump | Hydraulic pump
Axial Piston variable displacement Triplex pump for driving of
rotator, winch mud pump & leveling jacks.
With load sensing system. | 1st Pump:156LPM at 22MPa
2nd Pump:40LPM at 20MPa
3rd Pump: 13 LPM at 20MPa |
| Capacity of Main Hoist | Hoisting force (single wire) | 20kN(4400lbf) (bare drum) |
| Hoisting Speed (single wire) | 84-165m/min (bare drum) |
| Steel Wire Diameter | 14 mm(0.55 inch) |
| Steel Wire Length | 30 m(98.42feet) |
| Capacity of Wireline Hoist | Hoisting Force (single wire) | 800 Kg(1760lb) (bare drum) |
| Hoisting Speed (single wire) | 96-255m/min (bare drum) |
| Steel Wire Diameter | 6 mm(0.23 inch) |
| Steel Wire Length | 500 m(1640 feet) |
| Mast | Mast Height | 6 m(19.68 feet) |
| Mast Adjusting Angle | 0°—90° |
| Drilling Angle | 45º off horizontal to 90ºvertical down |
| Rod Pull | 1.5m |
| Feeding Stroke | 1800 mm(5.9ft) |
| Mud Pump | Type | Reciprocating pump Triplex Plunger |
| Model | BW100 |
| Others | Weight (platform type) | 3500 Kg(7716 lb) |
| Dimensions (L×W×H) | 5000×2200×1800mm
(16.4×7.28×5.9ft) |
| Transport Way | Crawler |
